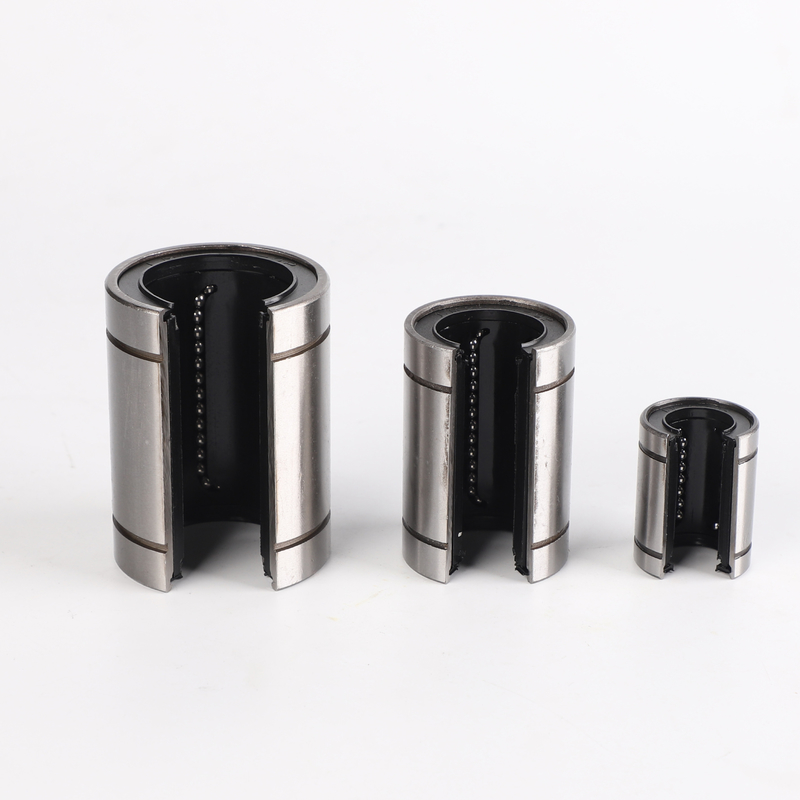

LM lineair lager:
LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8S, LM10UU, LM12UU, LM13UU, LM16UU,
LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM50UU, LM60UU, LM80UU, LM100UU
Lijne glijbaan:
1. sluittype: SC8UU, SC10UU, SC12UU, SC13UU, SC16UU, SC20UU, SC25UU, SC30UU, SC35UU, SC40UU, SC50UU, SC60UU (normaal type)
SC8WUU, SC10WUU, SC12WUU, SC13WUU, SC16WUU, SC20WUU, SC252UU, SC30WUU, SC35WUU, SC40WUU, SC50WUUSC50VUU ((Kort type)
2. Open type: SBR10UU, SBR12UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR40UU, SBR50UU(Normaal type) SBR10LUU, SBR12LUU, SBR13LUU, SBR16LUU, SBR20LUU, SBR25LUU, SBR30LUU, SBR35LUU,SBR40LUU, SBR50LUU(Langtype) TBR16UU, TBR20UU, TBR25UU, TBR30UU (Dit type met de flens aan het kussensblok)
Lineaire lagercatalogus
|
Model
|
Inwendige afmeting ((mm)
|
Buitengrootte ((mm)
|
Lange ((mm)
|
Gewicht ((kg/pc)
|
|
LM6UU
|
6
|
12
|
19
|
0.007
|
|
LM8UU
|
8
|
15
|
24
|
0.015
|
|
LM10UU
|
10
|
19
|
29
|
0.03
|
|
LM12UU
|
12
|
21
|
30
|
0.032
|
|
LM13UU
|
13
|
23
|
32
|
0.043
|
|
LM16UU
|
16
|
28
|
37
|
0.069
|
|
LM20UU
|
20
|
32
|
42
|
0.087
|
|
LM25UU
|
25
|
40
|
59
|
0.22
|
|
LM30UU
|
30
|
45
|
64
|
0.25
|
|
LM35UU
|
35
|
52
|
70
|
0.39
|
|
LM40UU
|
40
|
60
|
80
|
0.585
|
|
LM50UU
|
50
|
75
|
100
|
1.58
|
|
LM60UU
|
60
|
90
|
110
|
1.86
|
|
LM80UU
|
80
|
120
|
140
|
4.42
|
|
Model
|
Inwendige afmeting ((mm)
|
Buitengrootte ((mm)
|
Lange ((mm)
|
Gewicht ((kg/pc)
|
|
LM6LUU
|
6
|
12
|
35
|
0.016
|
|
LM8LUU
|
8
|
15
|
45
|
0.031
|
|
LM10LUU
|
10
|
19
|
55
|
0.062
|
|
LM12LUU
|
12
|
21
|
57
|
0.08
|
|
LM13LUU
|
13
|
23
|
61
|
0.09
|
|
LM16LUU
|
16
|
28
|
70
|
0.145
|
|
LM20LUU
|
20
|
32
|
80
|
0.18
|
|
LM25LUU
|
25
|
40
|
112
|
0.44
|
|
LM30LUU
|
30
|
45
|
123
|
0.58
|
|
LM35LUU
|
35
|
52
|
135
|
0.795
|
|
LM40LUU
|
40
|
60
|
154
|
1.17
|
|
LM50LUU
|
50
|
80
|
192
|
2.1
|
|
LM60LUU
|
60
|
90
|
211
|
3.5
|
