Single Row tapered roller bearing 32920

Productgegevens

Place of Origin: China

Merknaam: SFT

Model Number: 32920

Betaling en verzendvoorwaarden

Minimum Order Quantity: negotiable

Prijs: negotiable

Packaging Details: carton,pallet

Delivery Time: 20-45DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50000PCS/MONTH

Vind de beste prijs
Hoogtepunt:
Material:
Gcr15
Size:
100x140x25 mm
Clearance:
C0 C3 C4
Packing:
Poly bag, Box
Application:
Machinery
Material:
Gcr15
Size:
100x140x25 mm
Clearance:
C0 C3 C4
Packing:
Poly bag, Box
Application:
Machinery

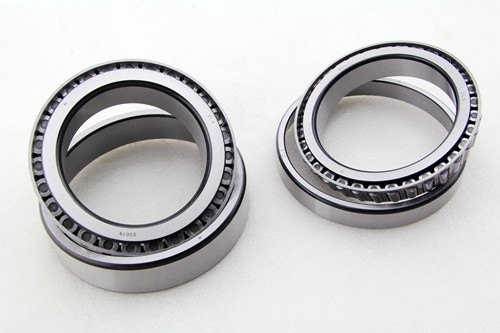

Single Row tapered roller bearing 32920

Automotive Front Wheel Hub Bearing

Product Description



A wheel hub assembly (WHA), also referred to as hub assembly, wheel hub unit, wheel hub bearing, etc., is a automotive part used in most cars, passenger vehicles, and light and heavy trucks.

The WHA is located between the brake drums or discs and the drive axle. A wheel is bolted on it. Depending on the construction, the end of hub comes equipped with the splined teeth. They mate the teeth on the axle shaft. The axle hub spins along with the wheels bolted to it and provide the power to the wheels in order to rotate.

A roller bearing between the axle hub and axle shaft ensures easy rotation of the non-drive wheels. On the axle side, it is mounted to the holding bracket from the chassis; on the disc side, the wheel is mounted to the bolts of the WHA. When replacing, a wheel hub assembly should be torqued to the vehicle's specifications to prevent failure.



Bearing model: 32920

Inner diameter: 100 (mm)

Outer ring height: 20 (mm)

Assembly height: 25 (mm)

Outer diameter: 140 (mm)

Inner ring height: 25 (mm)

Number of rollers: 33

Dynamic load: 126600 (N)

Static load: 218500 (N)

Weight: 1.149 (kg)

Single Row tapered roller bearing 32920 0

Single Row tapered roller bearing 32920 1

Single Row tapered roller bearing 32920 2
